TG-3
$4,957.00
In stock
SKU
TG-3

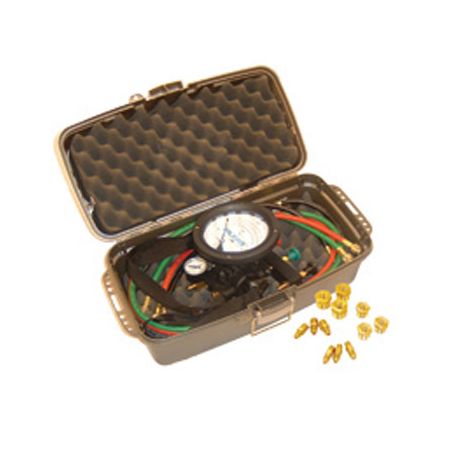

Wilkins: Three Valve Backflow Prevention Assembly Test Gauge
Application
The ZURN WILKINS Model TG-3 Backflow Prevention Assembly Test Kit is designed for testing all brands of Pressure Type Vacuum Breakers, Double Check Valve, and Reduced Pressure Principle Backflow Prevention Assemblies. The TG-3 is capable of performing all known testing procedures including those recommended by ASSE, AWWA and FCCCHR at USC.
Materials:
Features Maximum working pressure 200 psi
Working temperature range 35° F to 150° F
Gauge body of engineered thermoplastic material
Gauge dial: 4 1/2” diameter, 0-15 P.S.I. scale (75 divisions)
200 psi line pressure gauge dial c Accuracy: +/- 0.2 P.S.I.D. (descending)
Valves: soft-seated needle with replaceable seats (3 total)
Hoses and fittings: (3) 5' lengths; color coded, SAE 45° flare fittings and 90 micron cleanable porous metal (brass) filters
5 year warranty against defects in materials and manufacturing
Durable carrying case with external fitting compartments
SpecifcationThe Backflow Prevention Test Kit shall be a 3 valve pressure differential type. The test kit shall comprise of a 4 1/2” dial set in a thermoplastic housing with a 0 to 15 P.S.I. scale (0.2 P.S.I.D. Increments) and an accuracy of +/- 0.2 P.S.I.D. (Descending). The test kit shall incorporate 3 color coded resilient seated needle valves with SAE flare fittings and 3 color coded pressure hoses (5 ft. lengths). The test kit shall include a hard plastic case, calibration certificate and a laminated instruction sheet. The Backflow Prevention Test Kit shall be a ZURN WILKINS Model TG-3.
The ZURN WILKINS Model TG-3 Backflow Prevention Assembly Test Kit is designed for testing all brands of Pressure Type Vacuum Breakers, Double Check Valve, and Reduced Pressure Principle Backflow Prevention Assemblies. The TG-3 is capable of performing all known testing procedures including those recommended by ASSE, AWWA and FCCCHR at USC.
Materials:
Case material Molded Plastic Gauge body Thermoplastic Manifold Glass filled plastic Fittings Brass (NPT & SAE) Internals EP Elastomers 316 Stainless Steel Brass Hose Buna Nitrile liner and jacket.
Calibration
The ZURN WILKINS Model TG-3 Backflow Prevention Assembly Test Kit is subjected to calibration testing conforming to standards traceable to the National Bureau of Standards. It is recommended that gauges be rechecked for calibration annually. ZURN WILKINS is not liable for shifts in calibration other than caused by defects.
Calibration
The ZURN WILKINS Model TG-3 Backflow Prevention Assembly Test Kit is subjected to calibration testing conforming to standards traceable to the National Bureau of Standards. It is recommended that gauges be rechecked for calibration annually. ZURN WILKINS is not liable for shifts in calibration other than caused by defects.
Features Maximum working pressure 200 psi
Working temperature range 35° F to 150° F
Gauge body of engineered thermoplastic material
Gauge dial: 4 1/2” diameter, 0-15 P.S.I. scale (75 divisions)
200 psi line pressure gauge dial c Accuracy: +/- 0.2 P.S.I.D. (descending)
Valves: soft-seated needle with replaceable seats (3 total)
Hoses and fittings: (3) 5' lengths; color coded, SAE 45° flare fittings and 90 micron cleanable porous metal (brass) filters
5 year warranty against defects in materials and manufacturing
Durable carrying case with external fitting compartments
SpecifcationThe Backflow Prevention Test Kit shall be a 3 valve pressure differential type. The test kit shall comprise of a 4 1/2” dial set in a thermoplastic housing with a 0 to 15 P.S.I. scale (0.2 P.S.I.D. Increments) and an accuracy of +/- 0.2 P.S.I.D. (Descending). The test kit shall incorporate 3 color coded resilient seated needle valves with SAE flare fittings and 3 color coded pressure hoses (5 ft. lengths). The test kit shall include a hard plastic case, calibration certificate and a laminated instruction sheet. The Backflow Prevention Test Kit shall be a ZURN WILKINS Model TG-3.
| Model | TG-3 |
|---|---|
| Manufacturer | Wilkins |
| Allow Overnight Shipping | No |
